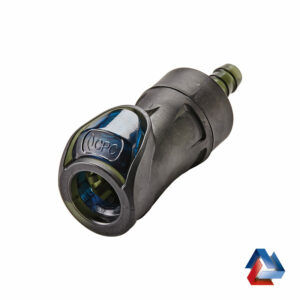

PLQ4 Serie

PLQ4 Serie
CPC-Kupplungen

Eigenschaften und Vorteile

Schlauch-Anschluss

6,4mm und 9,5mm ID (1/4' und 3/8' ID)

01

Betriebsdruck

Vakuum bis 8,3 bar (120 psi)

02

Betriebstemperatur

-40°C bis 115°C / -40°F bis 240°F

03

Material Gehäuse / Ventil

Polyphenylsulfone PPSU

04

Material Daumentaste

PPSU

05

Ventilfeder / O-Ringe

Edelstahl 316 / Buna-N

06

The Everis™ PLQ4 Series of quick disconnects provides ultra-reliable connections and dripless disconnections that protect sensitive electronic systems being cooled via liquid cooling. Built of polyphenylsulfone (PPSU), a high-performance thermoplastic, the Everis PLQ4 connector is lightweight and inherently resistant to galvanic corrosion. Everis PLQ4 connectors are rated UL94 V0 flame retardant and are easy to use making them a perfect choice for liquid cooling of electronics applications. These industry-leading connectors offer a high-flow capacity to optimize thermal management system performance. The Everis PLQ4 Series uses patent-pending CPC-developed valve technology that eliminates drips and is specifically designed for long-term connected states.

INFILTEC

Eigenschaften

  • Made of high-performance PPSU material
  • Non-spill valve design
  • High flow to size ratio with low pressure drop
  • Ergonomic body and latch design

Vorteile

  • No drips during connection or disconnection
  • Increased cooling efficiency in smallspaces/li>
  • Simple, intuitive one-handed operation
  • Provides connection assurance

Zeigt alle 24 Ergebnisse

Achtung
Druck, Temperatur, Chemikalien und Arbeitsumfeld können die Leistung von Kupplungen beeinflussen. Es liegt in der Verantwortung des Kunden, die Eignung der Colder Produkte im Rahmen seiner eigenen Anwendungsbedingungen zu testen. Die Diagramme oben sind als Richtlinie zu verstehen.
